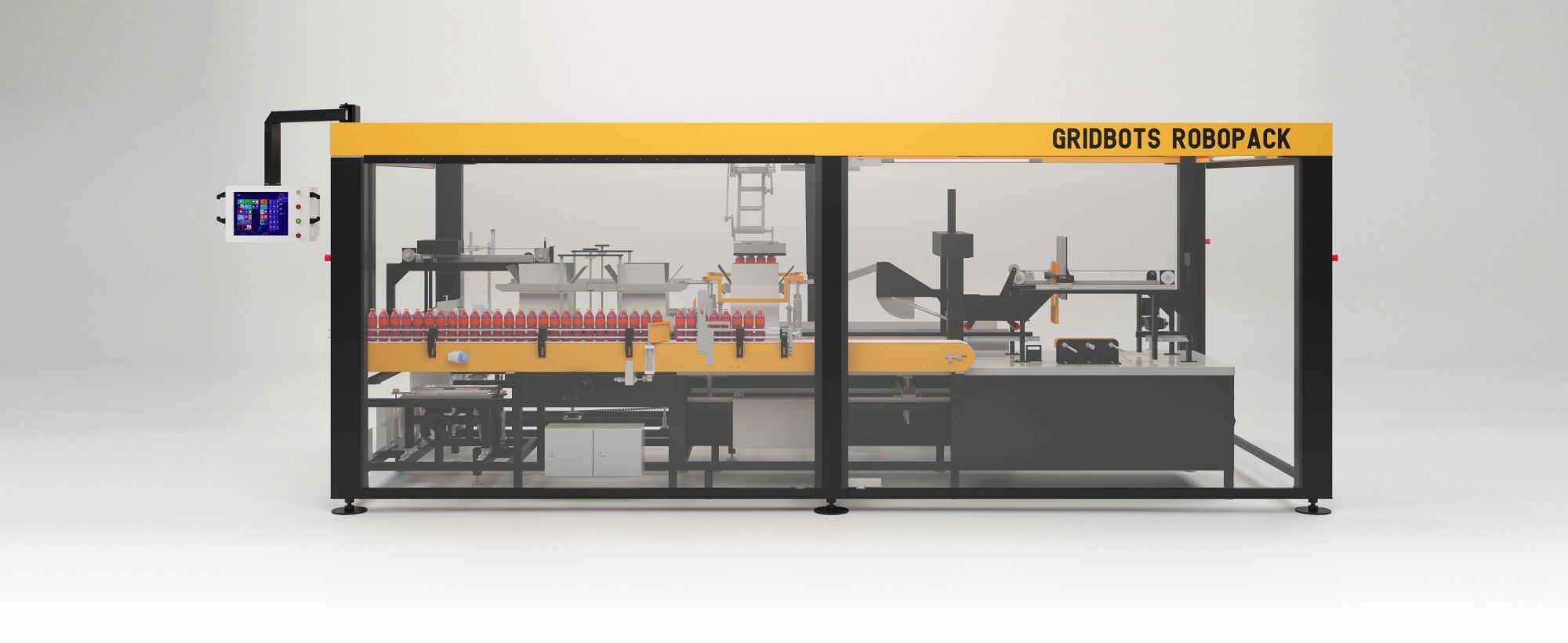

Gridbots Robopack

AUTOMATED ROBOTIC CASE PACKER


Gridbots Pick Pack series of Top Loading Robotic Packers can pack various items such as bottles, soaps, diapers, sanitary napkins, tetra packs, ice creams, packets, pouches at high speeds using Gridbots Spider or Linear Robots. The entire solution designed and manufactured by Gridbots. The system comes with single or multiple robots depending on the line speed and packaging matrix.

We provide various options in case packing to clients so that they can pick and choose the relevant features as per their requirements. Using Gridbots Innovative Grippers we can pick and pack anything. The item picking and packing can be done directly from line or using a collation.

Gridbots Box Erector includes perfect square box forming technology and easy tape changing facility. The product is designed to ensure minimum box drops, alerts for low taping and low boxes.








FULLY AUTOMATIC ROBOTIC CASE PACKERS






Features

Single Row in 1 Cycle

20 – 25 Cycles / Minute using Parallel Jaw Gripper

100% Gripper Picking Efficiency

100 Cycles for Very Light Weight Pickup using Vacuum

Pick and Place Various Shaped Objects with Ease

Excellent choice for small items

Highly compact system

Up-to 5 KG Weight in Single Cycle





Specifications

PICKER ROBOT

Payload Upto 5 kg
Reach Upto 1 Meter
Configuration Scara
Axes 4
Gripper Electromagnetic/Pneumatic

PACKER ROBOT

Payload Upto 25 kg
Reach Upto 1 Meter
Configuration Palletiser
Axes 3
Gripper Electromagnetic/Pneumatic

BOX ERECTOR

Box Per Minute Upto 15
Ply Rating 3-5-7
Magazine Support Upto 600 Boxes
Box Width Supported 200-600 mm
Box Length Supported 200-600 mm
Box Height Supported 150-600 mm
Box Tapping Bottom - Top

WEIGHING SYSTEM

Capacity 1-25 kg
Least Count 0.01 Kg
Measurement Time 0.5 Seconds
Display 16 Digit Alphanumeric

CONTROL SYSTEM

Controller x64
Touch Multi Point Capacitive
IOT Inbuilt
Wireless 2.4/5.8 Ghz

UTILITIES REQUIREMENT

Air Supply 8 CFM@5 bar
Power 3 Phase A.C.[ 1 Kw Peak Consumption]
IP Rating IP65
Temperature 0-60 Degrees
Humidity Upto 95% - Non-Condensing

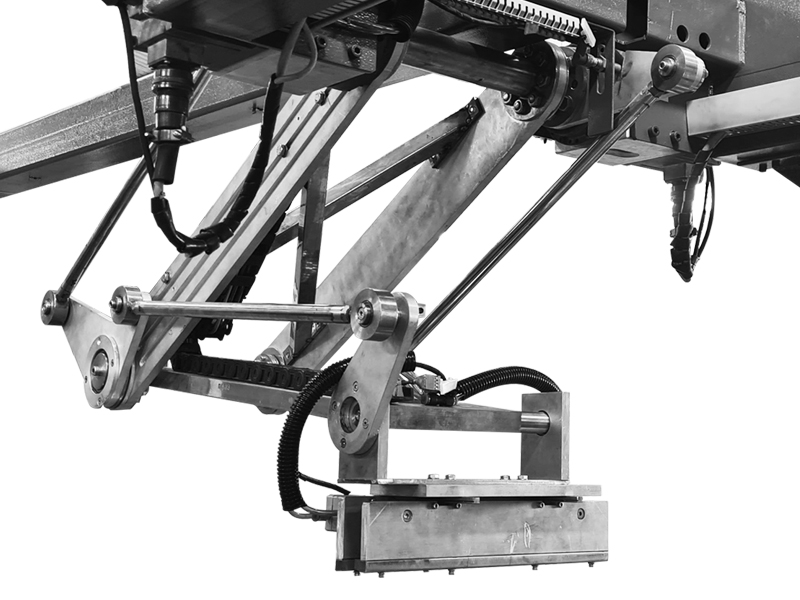

case_packer_1

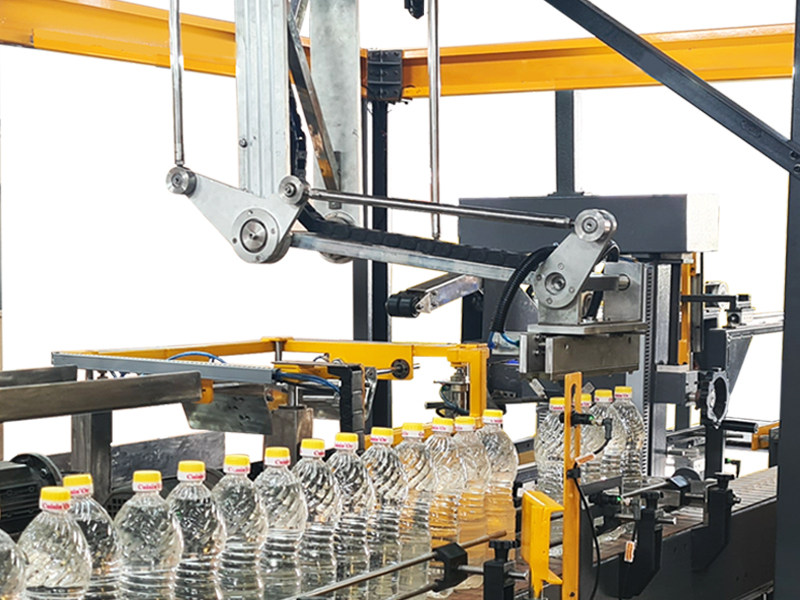

case_packer_2

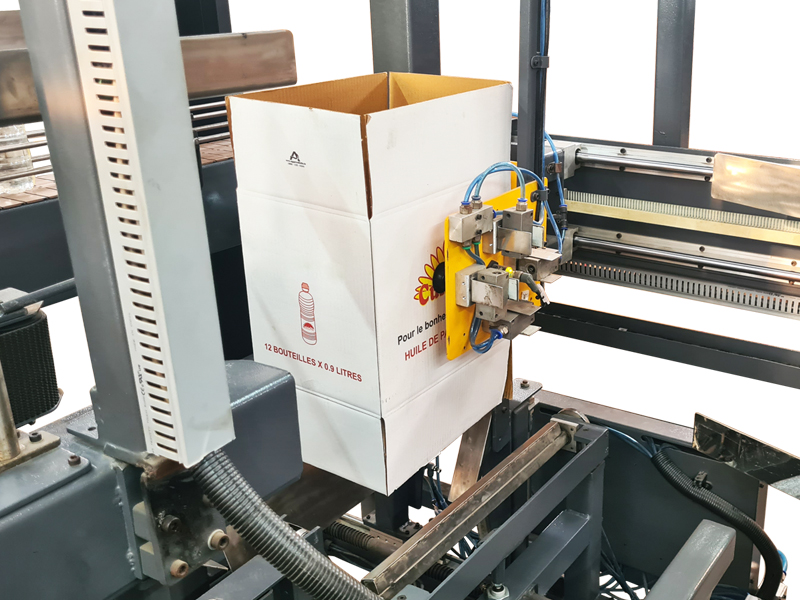

case_packer_3

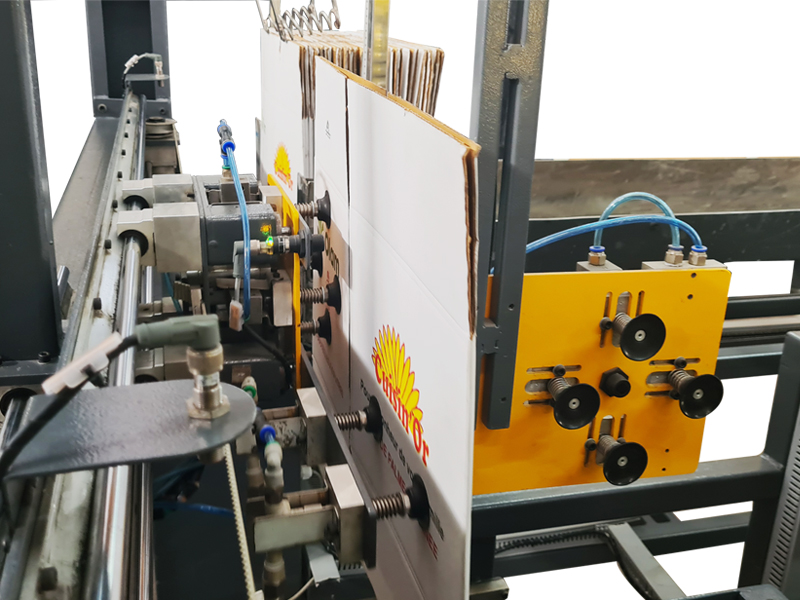

case_packer_4






Drawings


case_packer_drawing_1

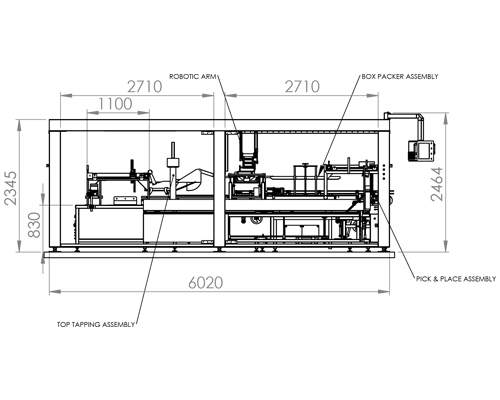

case_packer_drawing_2
case_packer_drawing_3
case_packer_drawing_4
