Gridbots Geometric megaVIEW

Precise - non contact - agile measurement system


Gridbots Geometric megaVIEW can be used for non-contact precise measurements of objects ranging from 1-2000 mm within a tolerance of 10 Micron onwards and with a speed of upto 1000 parts per minute.

It can provides fast, easy, consistent measurements for industrial and research uses. With automatic edge and orientation detection, sub pixel processing, in-built lens aberration, large field of view taking measurements have never been so easy.

The system uses multi Mega-Pixel cameras and provides unmatched size measurements capabilities with very high accuracies.





geometric_cam



NON CONTACT MEASUREMENT SYSTEM





Features


Online (Conveyor Based) And Offline (Table based) Option

1000 Parts / Minute Measurement Capabilities

Multi Part Dimensioning In Single Frame

Automatic Edge And Orientation Detection for Automatic Part Recognition

In-built Lens Aberration and Sub Pixel Processing for Higher Accuracy

Large Field Of View

IOT Enabled Systems with trends and alerts

Integrated Height Measurement System Optional






Specifications


Model Number GB-GCAMXXXX
Max FOV 2000 mm x 2000 mm
Power Consumption 50W
Interfaces Multi Channel GPIO
Camera Pixel Size 6.0 x 6.0μm
Accuracy 10 Microns Onwards
No of Measurements Upto 1000 Per Minute
GPU Inbuilt
Rejection Pneumatic Compressed Air – 6 Bar
HMI Intuitive 17 inch touch HMI with Easy to use GUI and Customizable Reports
License Perpetual Geometric CAM software license
Options Online (Conveyor Based) And Offline (Table based) Option



geometric_cam_1
geometric_cam_2

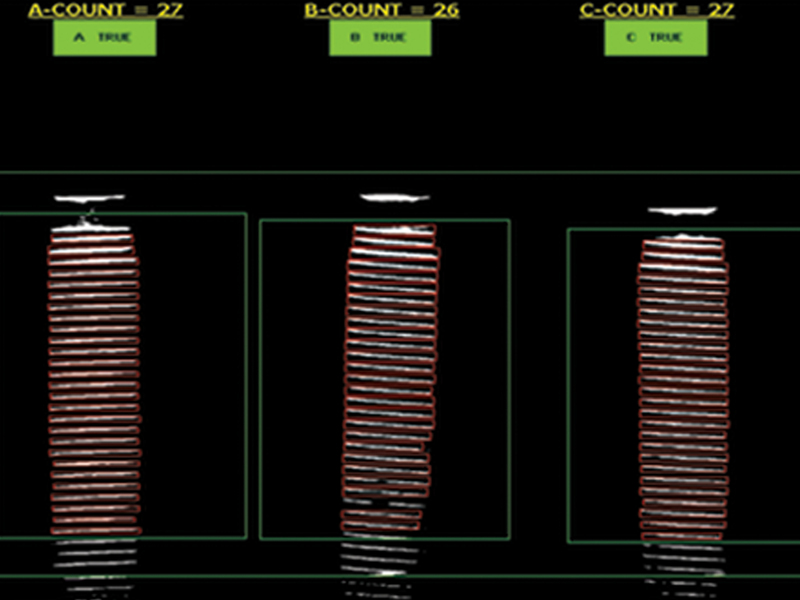

geometric_cam_3
geometric_cam_4
