HAWKEYE

360 Degree Situational Awareness [Vision, Thermal and RADAR's]


Gridbots HAWKEYE is a 360 Degree situational awareness see through armour vision system which provides information about the objects and people around the armoured vehicle and track them in realtime.

It can be used by army - homeland security units- police force units in high threat and counter terrorist urban environment scenarios.

The product is a combination of high precision optic system - Thermal camera's and RADAR's mounted with precision and a parallel compute architecture which enables the system to locate - track and inform the user about any situational threat.



gridbots_hawkeye_main

360 Degree Situational Awareness



Multisensor Tracking

Vision+Thermal+RADAR

High Sensitivity

Human Detection at 500 Meters

Multimode Sensing

Light+Heat+RF Sensing

GPU Compute

Parallel Processing



Features


Surveillance & Reconnaissance

Detection and Tracking

2D/3D Map Generation

Automatic Calibration

Upto 1 Km Sensing

Direct Drive Interfacing

50Hz Update rate

Deep Learning Models Support






Specifications


Model Number GB-HAWKEYE-VTR
Range 1000 Meters[Detection]
Sensor Pod Weight 10 Kg
Moc Spacecraft Grade Aluminum
Vision Sensor 8
View 360 Degree Pana/Thermal
Comm Encrypted
RADAR 4 Units
Battery External
Control Remote Login
Video Analytics Custom Models running on GPU
Simultaneous Tracking Upto 20 Objects
IP Rating IP 65
Frame Rate 50Hz [Both Vision and Radio's]
LIDAR Support Yes
Calibration Auto
Sensors Vision/Thermal/RADAR

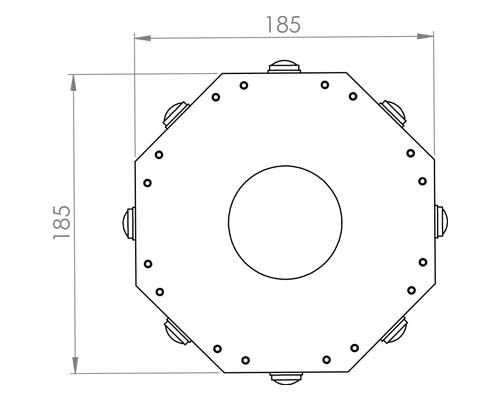

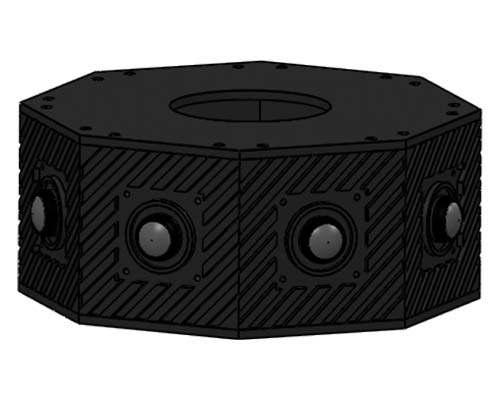

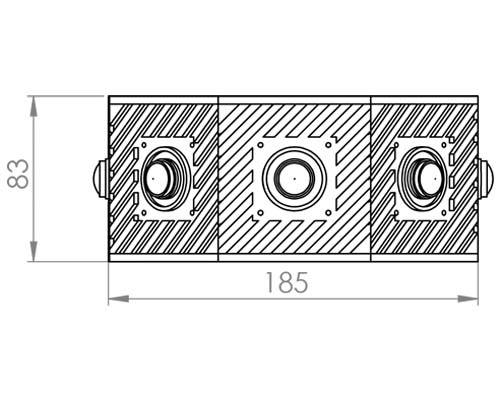

Drawings



gridbots_hawkeye1
gridbots_hawkeye2
gridbots_hawkeye3
