Gridbots Geometric - microVIEW

Micro Size part Measurement System


Gridbots Microview is an automatic dimensioning system based on precise optics and ai enabled algorithms.

The camera system can measure items from 10uM(Microns) to 5000 uM(Microns) with a precision of 1uM(Microns) within 100 milli-seconds.

The system comes with an option of vibratory platform which enables it to do a batch measurement of mulitple items automatically and generate reports.

.The system has inbuilt controller to generate accept and reject signals in case it is mounted on a moving conveyor or linear feeder.

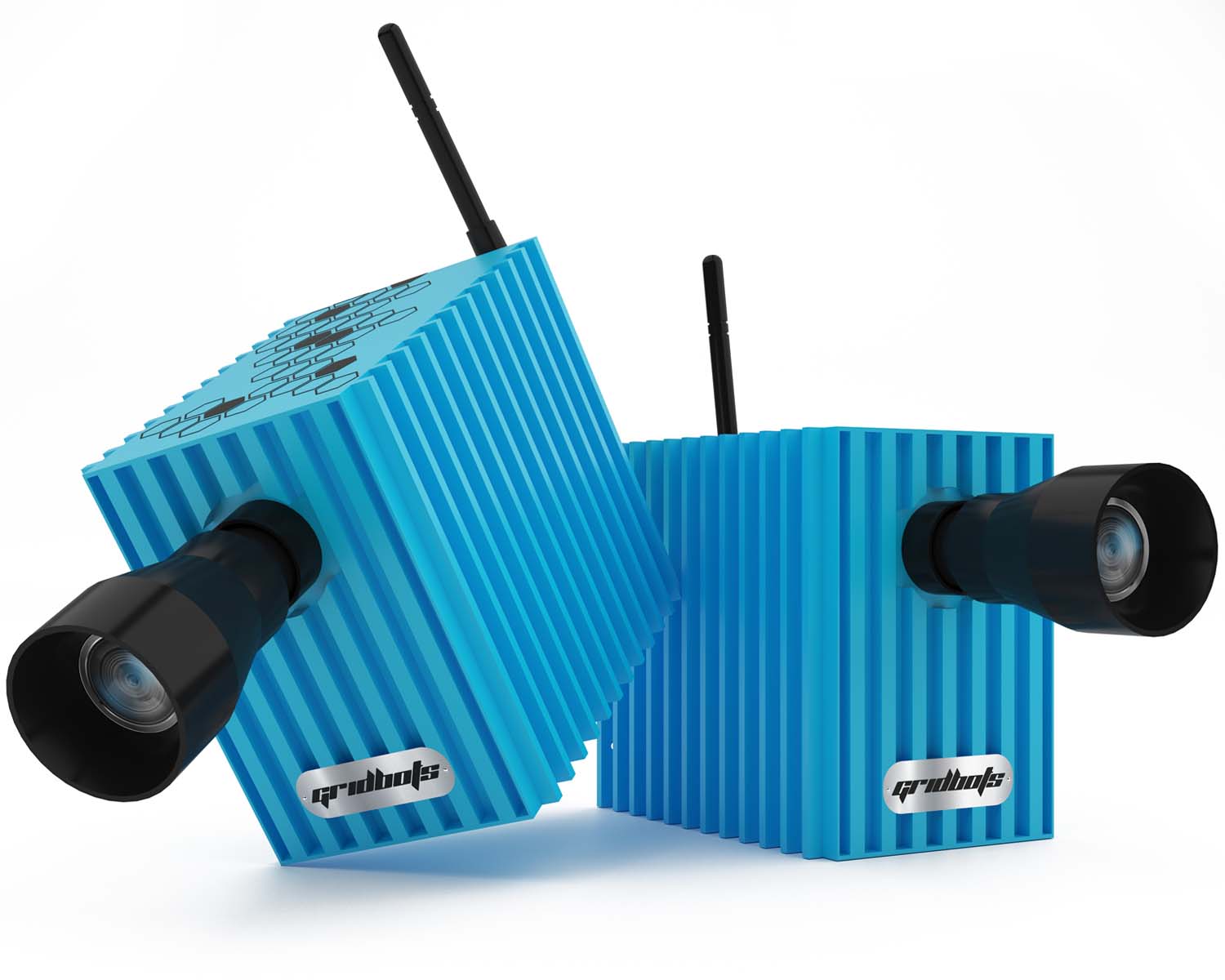

microview_main



MICRO SIZE DIMENSIONING SYSTEM





System Features


Automatic and Batch Measurement Mode

Generates Item Count, Length, Width, Area, Aspect Ratio, Color, Transparency, Luminescence Report

Can also do surface inspection and reflectance measurement

Self Contained Calibration system

Real Time Analytics with Automatic Report Generation

Image Log for Verification at later time

Fully compliant IOT Device

Optional Shake Table platform avaialbe on request






Technical Specifications


Model Series GB-MICROVIEW
Build Material Aluminum
Measurable object size 10 Microns - 5000 Microns
Lens and Lighting Integrated
Optional Attachements Shake Table
Measurement Speed 100 MilliSeconds
Electrical Supply 230 Volt-Single phase
Particel Overlap Detection[Batch Mode] Yes
Reporting Integrated Report Generation Tool
GUI Supplied Intuitive and User Levels based
Online Measurement Support Yes - Direct Accept and Reject Lines Supported
Computing Architecture x64 PC [ Inbuilt ]
Data Logging Yes with Image [ Local and Remote Logging Option]



microview_1
microview_2
microview_3
microview_4
