Paintbot

5/6 Axis Articulated Robot

Home » Industrial » Paintbot

Dexter is a fully compliant 5/6 Axis articulated Robotic Manipulator from Gridbots Technologies.

This robot can be used for Painting - Welding - Pick and Place - Assembly operations with a high speed and Reliability.

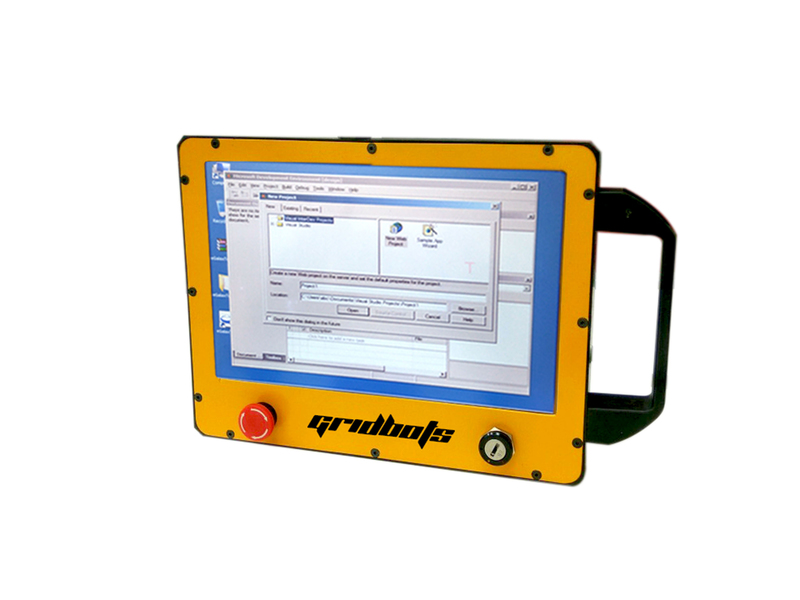

The system comes with a 10” HDMI Teach Pendant and Gridbots easy Control GUI which makes programming the robot very easy.

dexter_main

6-AXIS ROBOTIC ARM





Features


Battery Operated

0.2 mm Precision

5/6 DOF Robot

5 Kg Payload

Easy to Install

Programmable

Gripper Multiple

Fast ROI and High Speed






Specifications


Model Number GB-DEXTER-5
Reach 1000 mm
Axis 5/6 Axis
Resolution 200 Microns
Power Consumption 1000 Watts/ 36 V
Gripper Option Multiple
Payload 5 Kg Max - 3 Kg Recommended
Control System Gridbots - Simula
Optional I/O 12 GPID Channels
Teach Pendant 10” HDMI Screen With Touch
Interfaces USB / Teach Pendant
Weight 30 Kg [Man Portable]



dexter_1
dexter_2
dexter_3
dexter_4
