Pattman-Pharma

2D barcode reader

Home » Industrial » Pattman-Pharma

Gridbots PATTMAN is one of the fastest 2D barcode readers available in the market today with a whopping speed of upto 200 decodes / second it beats all the available 2D barcode decoders in the market with a margin of 300% .

The system can read and decode QRCODE - PDF417 - Datamatrix - Aztec barcodes with high accuracy and speed. The system is based on 64 Bit architecture and can store the data for more than 1 year in standalone configuration.

It consumes less than 20 Watts of power and comes with multiple option for interfacing ranging from Wi-Fi , Ethernet - Serial - I2C - SPI - CanBus.

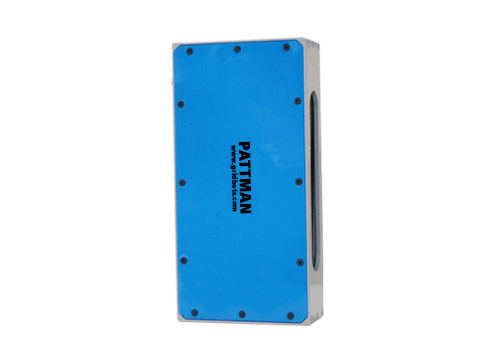

pattman_main



FASTEST BARCODE READER





Features


Low Distortion Optics and Electronics

64 Bit CPU Inside

Upto 200 Decodes per Second

Integrated Lights

Multiple Bar Code Reading in real time.

200 Hz Reading Rate

750 g Weight

Easy Setup and 20 Watts of Power






Specifications


Model Number GB-2D-DCD
Dimensions [LxBxH] 220 x 150 x 25 mm
Read Rate 200 Hz
Trigger Mode External and Free Running
FOV 45-65 Degree [HxV]
Power Consumption 20W - 12 V
Interfaces Wi-Fi/Ethernet/Serial/I2C/SPI/CANBus
Weight 750 g
Pixel Size 6.0 x 6.0μm
TAG SIZE Minimum - 10x10 mm

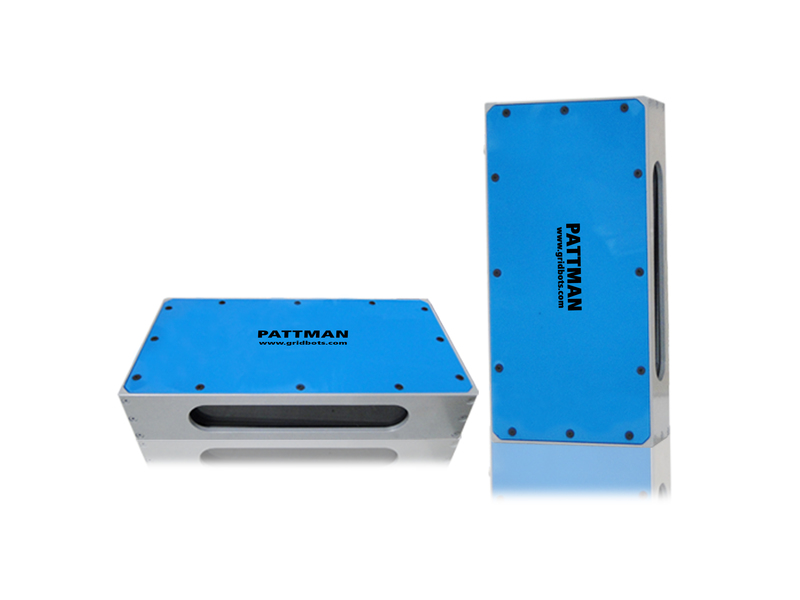

pattman_1
pattman_2
pattman_3
pattman_4
