Gridbots Textminer

AI ENABLED - AUTOMATIC TEXT EXTRACTION


Gridbots textMiner is AI enabled camera based vision system which can decode all kind of text in any font or Hand Written text in real time. The software comes with Advanced Neural Network Engine in the background so that the system can auto learn the printed and hand written text in no-time and adapt itself.

The system can detect text as small as 1 mm size to 500 mm in size without any change in setting and can decode at a staggering rate of 10 Hz for a full A4 Page

Enormous applications like item Track-N-Trace - Bank/Insurance automated document digitization - inventory tracking and many other can be built using Gridbots Textminer. Some of the examples of the applications are given below:

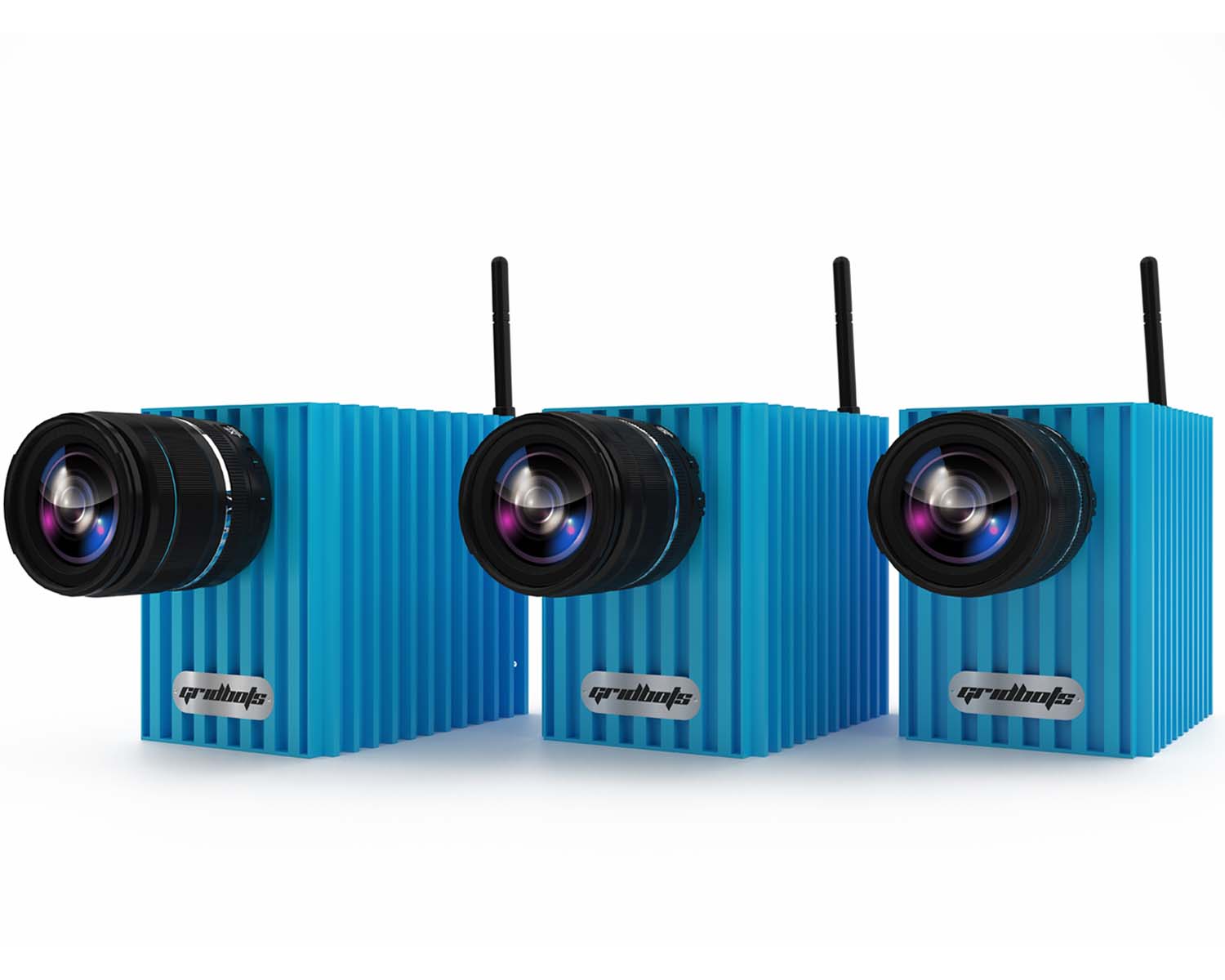

textminer_main



AI ENABLED TEXT EXTRACTION

E-Commerce Warehouse

E-Commerce Warehouses utilizes lot of manpower for inbound item qualification and outbound item qualification.

Inbound item qualifications generally requires matching product with self ordering information such as color of item, brand of item, MRP of item, size of item and the information printed on the label. This is generally done manually in almost all warehouses before product is staged into the warehouse at their respective location. Similarly, when the product is shipped out, the material is inspected for MRP, Color, Size, Code, Brand etc on the customer order and the product that is being shipped. Matching these data points will significantly reduce wrong shipment as well as prevent the theft by employees using wrong stickers.

Automatic Invoice Matching with Physical Product Identification

In large warehouses, lots of items are taken inside which needs to be matched against the invoices. Unless these items are checked, the trucks are kept waiting for clearance. This reduces warehouse efficiency. Using Gridbots Invoice Matching with Physical Product Identification Solution, the inbound QA process could be automated. The Invoice is loaded into the system where it can read individual items names and quantities and process them in real time when items are loaded on the conveyor to take them inside the warehouse. Thus this QA process becomes realtime which results in huge savings in truck turnaround time.

Medicine Delivery Ecommerce

There is boom in the world in medical ecommerce. Since it is question of life and death of person involved consuming the medicine, the QA process at the delivery company is very stringent. In most of the cases, the medicine is checked twice or thrice before dispatching it to the consumer. Information such as brand name, MRP, Batch Code, Expiry Date are checked by the QA team. This process can become easy using Gridbots textMINER solution which can read information even on high shiny aluminum blisters.





Features


Low Distortion Optics and Electronics

10 Hz Read Rate

Automatic Text Extraction even in unstructured environment

Low Power Consumption

X,Y,Z Location of text

Auto Learn

Fast Response

Automation API's and Cloud Option






Specifications


Model Number GB-TEXTMINER
Dimensions [LxBxH] 50x100x50 mm
Read Rate 10 Hz
Light In-Built
Object Size Minimum :1 mm / Maximum : 500 mm
Text Type Printed and Hand written
Error Rates Less than 3% for Printed Tax
Power Consumption 20W @ 12 V
Interfaces Wi-Fi/Ethernet/Serial/I2C/SPI/CANBus
Trigger Mode External and Free Running

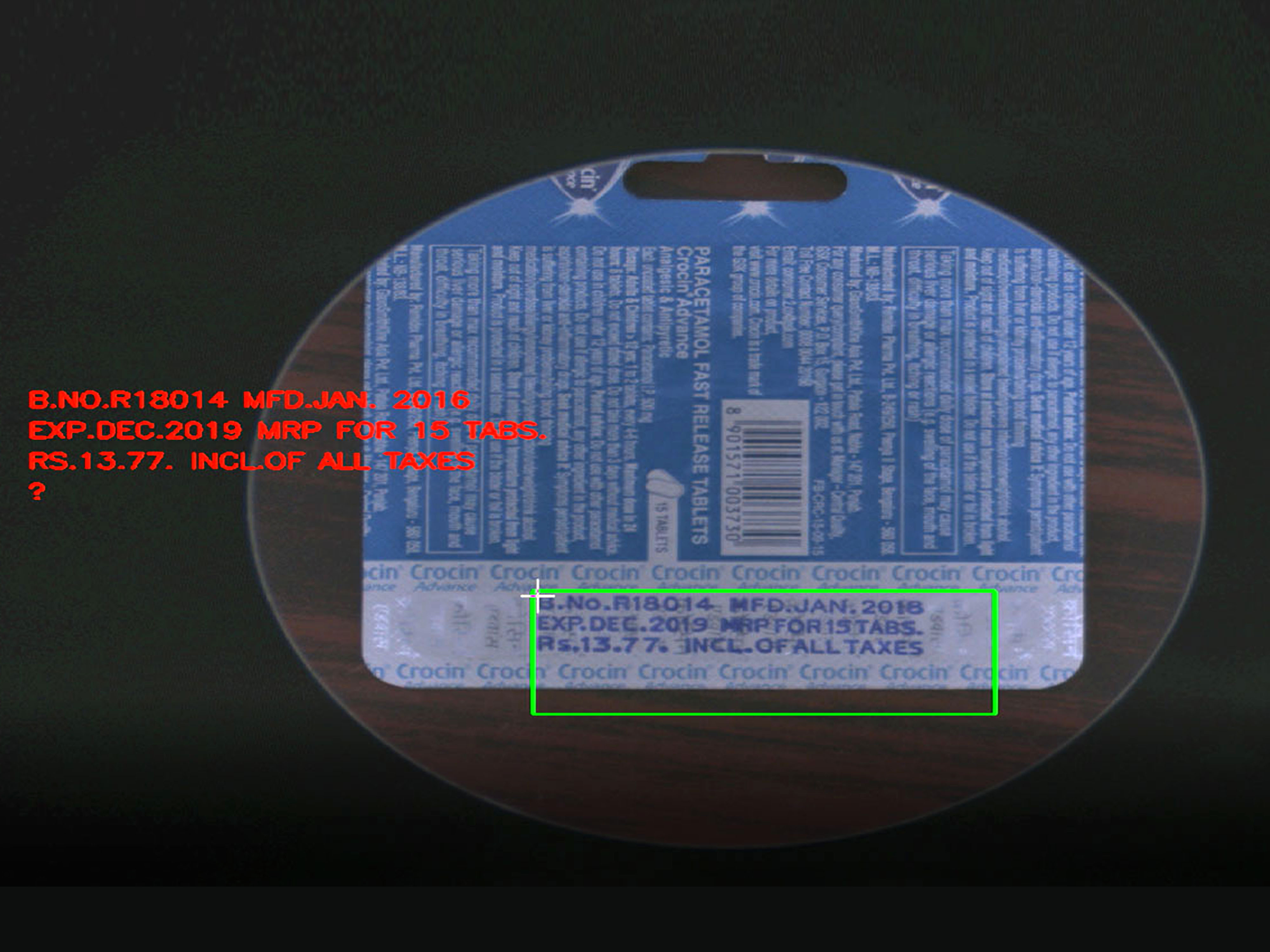

textminer_1

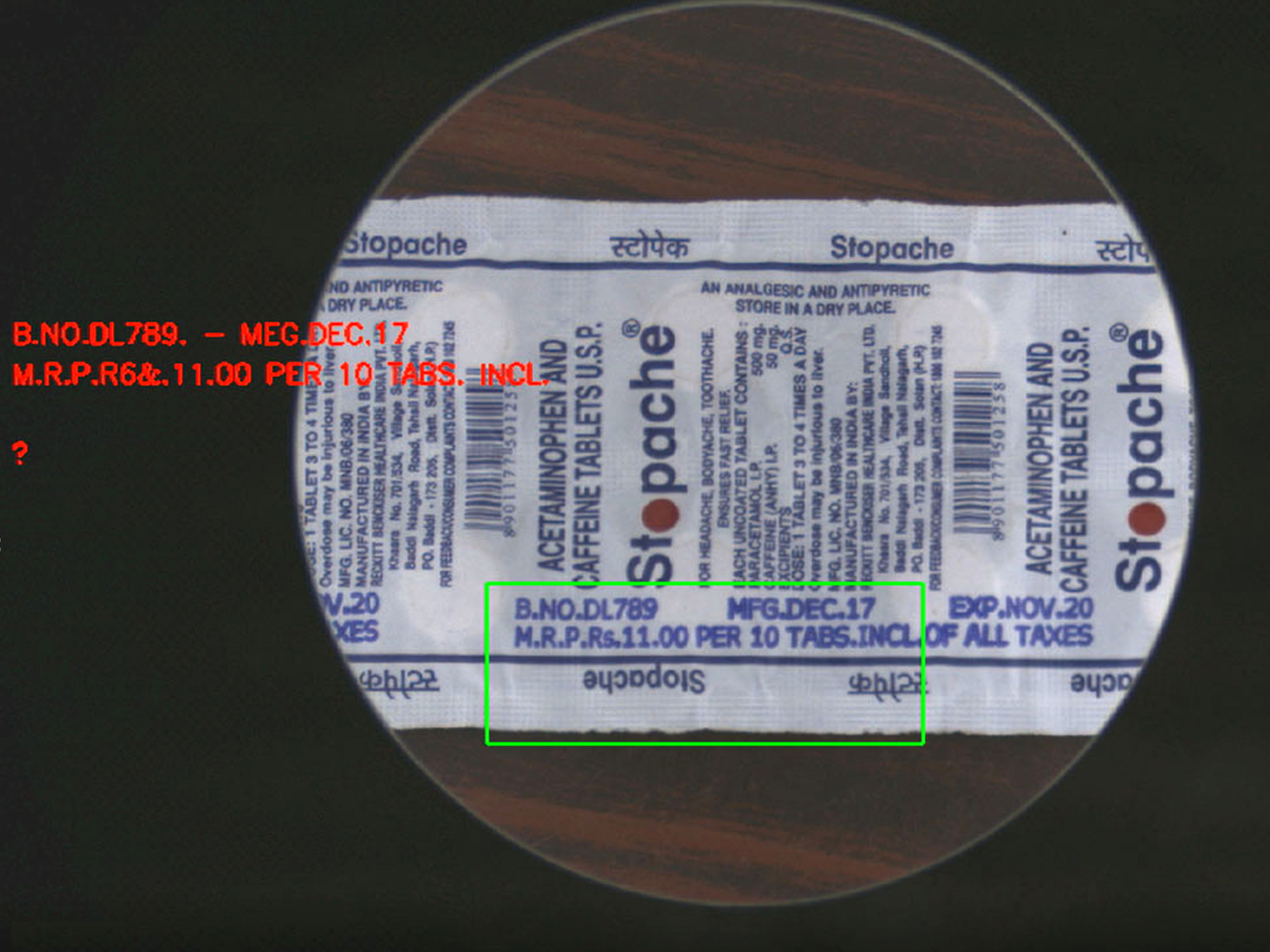

textminer_2

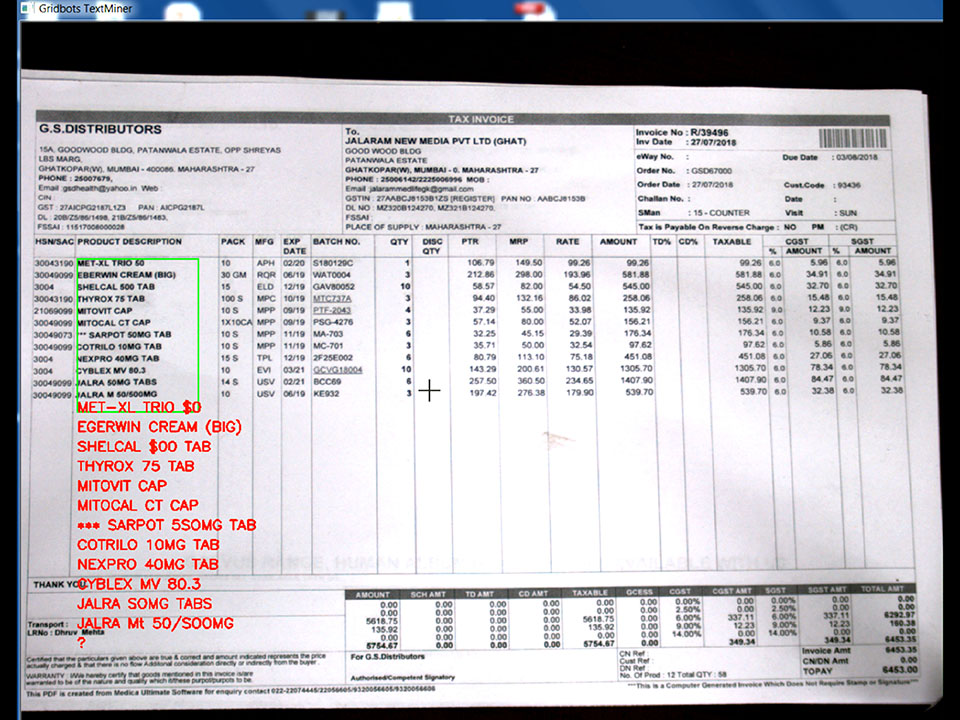

textminer_3

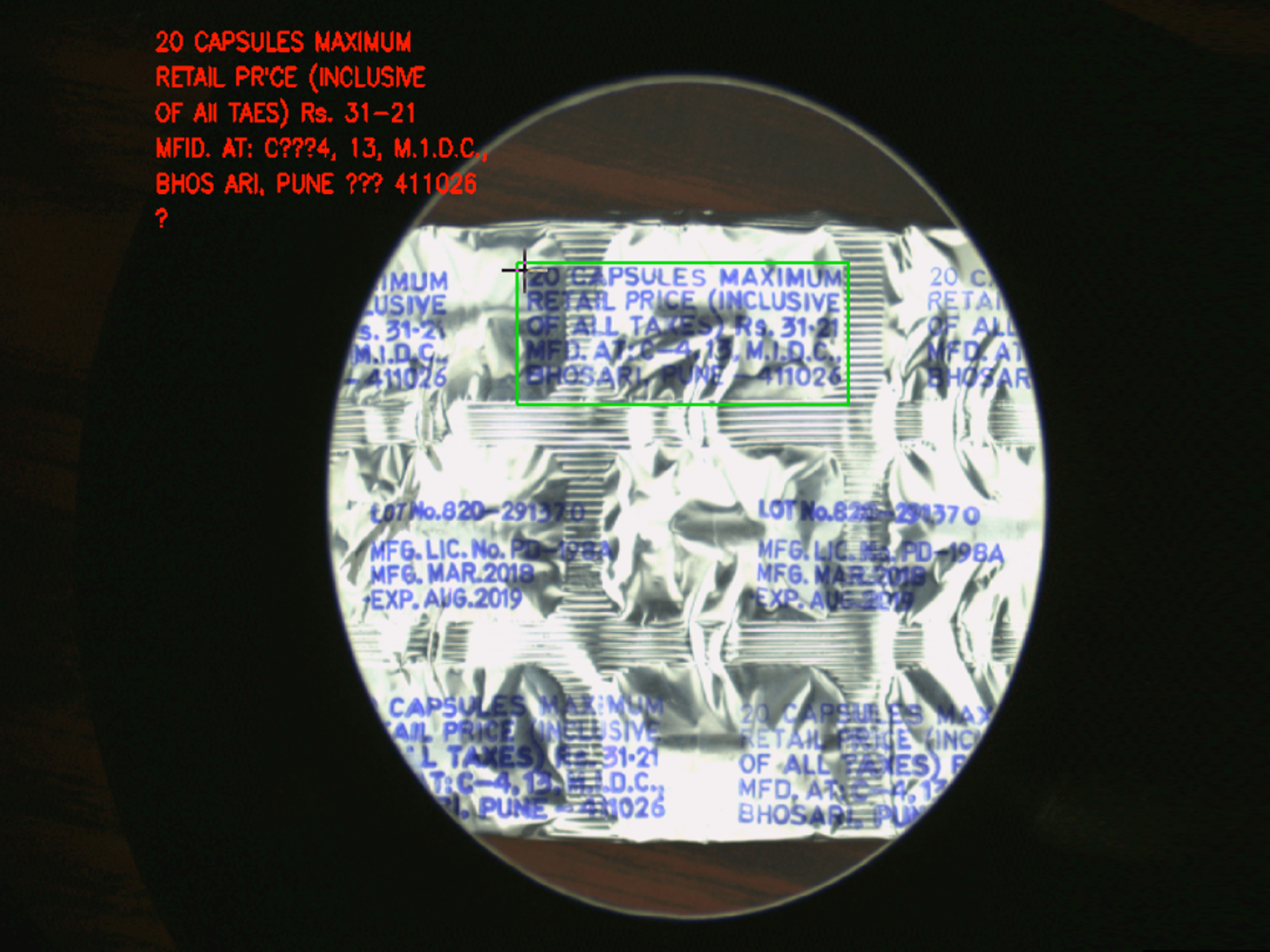

textminer_4
