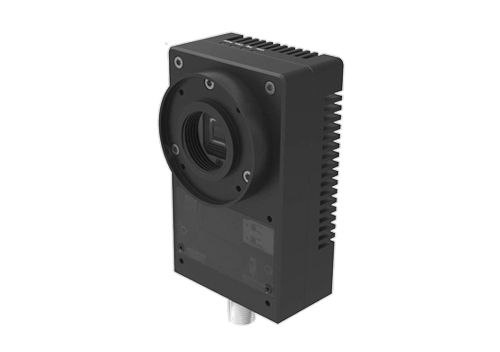

A Self contained Camera based vision system which can Decode all kind of text in any font or Hand Written text in real time.
The system can detect text as small as 1 mm size to 500 mm in size without any change in setting and can decode at a staggering rate of 10 Hz for a full A4 Page.
With Neural Network Engine in the background the system can auto learn the printed and hand written text in no-time and adapt itself.
Enormous applications like item Track-N-Trace - Bank/Insurance automated document digitization - inventory tracking and many other can be built using Gridbots Textminer.
AI ENABLED TEXT EXTRACTION
Low Distortion Optics and Electronics
10 Hz Read Rate
Precise Results
Low Power Consumption
X,Y,Z Location of text
Auto Learn
Fast Response
Automation API's and Cloud Option
Model Number | GB-TEXTMINER |
Dimensions [LxBxH] | 50x100x50 mm |
Read Rate | 10 Hz |
Light | In-Built |
Object Size | Minimum :1 mm / Maximum : 500 mm |
Text Type | Printed and Hand written |
Error Rates | Less than 3% for Printed Tax |
Power Consumption | 20W @ 12 V |
Interfaces | Wi-Fi/Ethernet/Serial/I2C/SPI/CANBus |
Weight | 500g |
Trigger Mode | External and Free Running |
