This is a laser based high precision profile scanner suited for welding applications.It can scan 1000 profiles per second and output the data directly to the welding torch and robot.

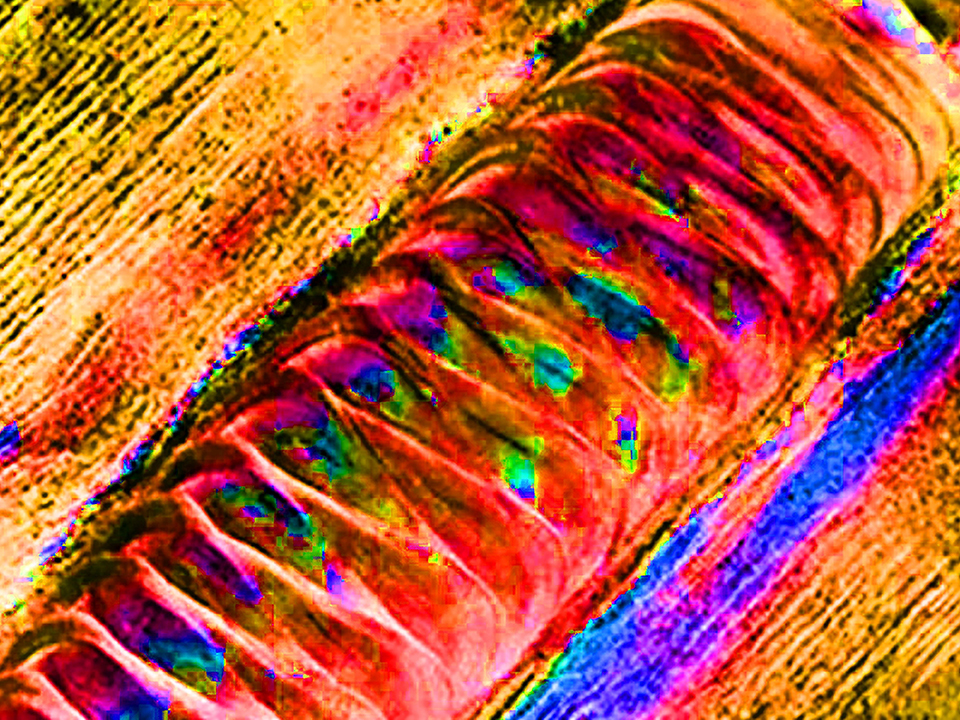

The system can detect any welding seam defects - cracks or ir-regular welding and can provide correction signal accordingly.
The system can withstand high temperatures and can directly be mounted on the welding robot tip point to provide readings in real time.
Weld SCAN
Upto 1000 Hz Update Rate
50 Micron Z Resolution
Control Output to Welding Torch and Robot
Detect Cracks and Bulging in Weld Seam
HIgh Temperature Sustenance
Edge Computing
Low Power Consumption[20W]
Works on all type of welding torches
Model Number | GB-WELDSCAN |
Dimensions [LxBxH] | 300 mm x 150 mm x 70 mm |
Update Rate | Upto 1000 Hz |
Depth Resolution | Upto 50 μm |
Horizontal Resolution | 1 MM [2000 Points] |
Baseline | 50-100 mm |
Illumination | Violet Laser [10mW] |
Trigger Control | TTL - Rising Edge |
Power Consumption | 20W - 12 V |
Interfaces | Serial @ 1Mbps/RS-485/IP Based |
Weight | 550g |
